Product Specifications:
Product Name: G6Pro Elite Edition
Connection Mode: 2.4G/Bluetooth/Wired Triple Connection
Joystick Report Rate: Wired 1000Hz/Wireless 150Hz

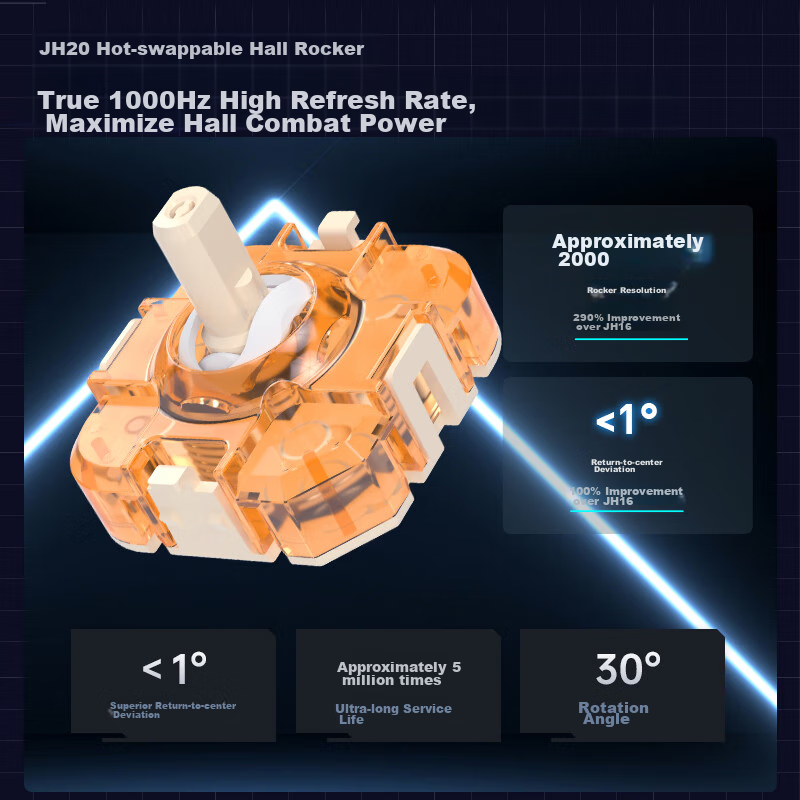

Joystick: Approximately 2000 levels, JH20 hot-swappable Hall Effect joystick
Trigger: Microswitch + Hall Effect Linear Dual Trigger
Action Buttons: All mechanical action buttons
Macro Keys: 2 rear keys
App Support: Keylinker

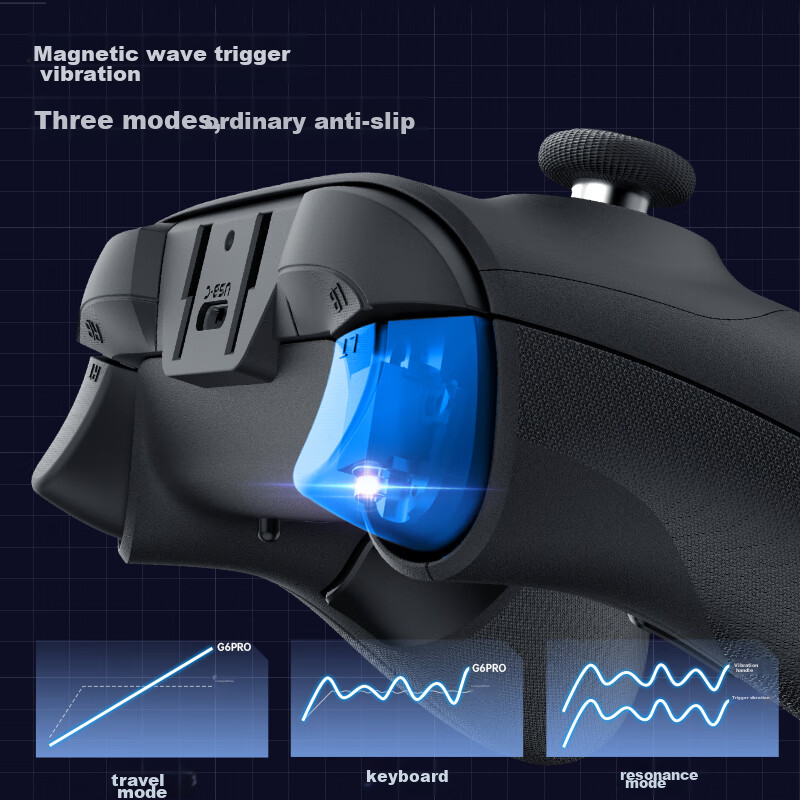

Trigger Vibration: Supported
Stroke/Native/Resonance Three Mode Switching
Motion Sensing: Supported
Battery: 860mAh
Dual-core Receiver: Supported
Compatible Platforms: PC/NS/TV/Mobile/Car

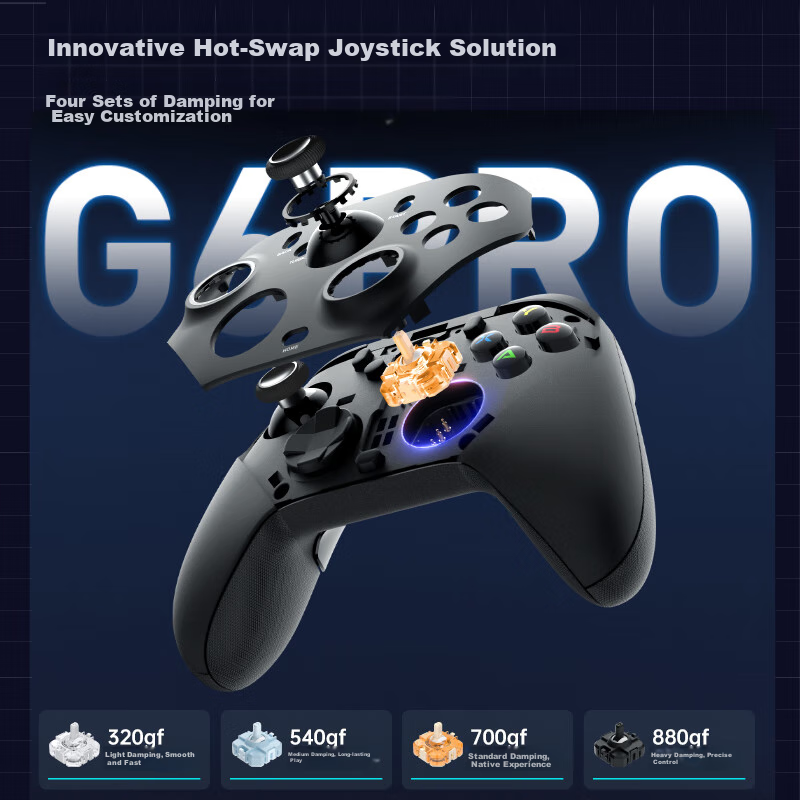

Package Contents: 1 controller, 1 receiver, 1m data cable, 1 joystick puller, 2 high joystick caps, 2 low joystick caps (default on the controller), 2x 320gf pull-out joysticks, 2x 700gf pull-out joysticks (default on the controller), 1 manual, 1 joystick replacement guide
Joystick/Trigger Calibration:
*During calibration, gently rotate the joystick and lightly press the trigger to the bottom, otherwise there may be issues with the joystick/trigger not reaching full capacity.
1. With the controller turned off, set the trigger lock to the linear position with the longest stroke.
2. Press the combination of [BACK] + [B] + [HOME] keys to start calibration. The indicator light will flash alternately during calibration.
3. Joystick Calibration: Rotate the left and right joysticks slowly and completely for more than three full circles.
4. Trigger Calibration: Press the [LT] and [RT] keys to the bottom once each.
5. Finally, press the [START] key to complete the calibration, and the controller will shut down automatically.
Motion Sensing Calibration:
1. Press the [BACK] + [A] + [HOME] keys simultaneously to start calibration.
2. Place the controller flat on the table.
3. Press the [START] key to start the automatic calibration of the controller.
4. Wait for the controller to shut down automatically, indicating the completion of the calibration.
