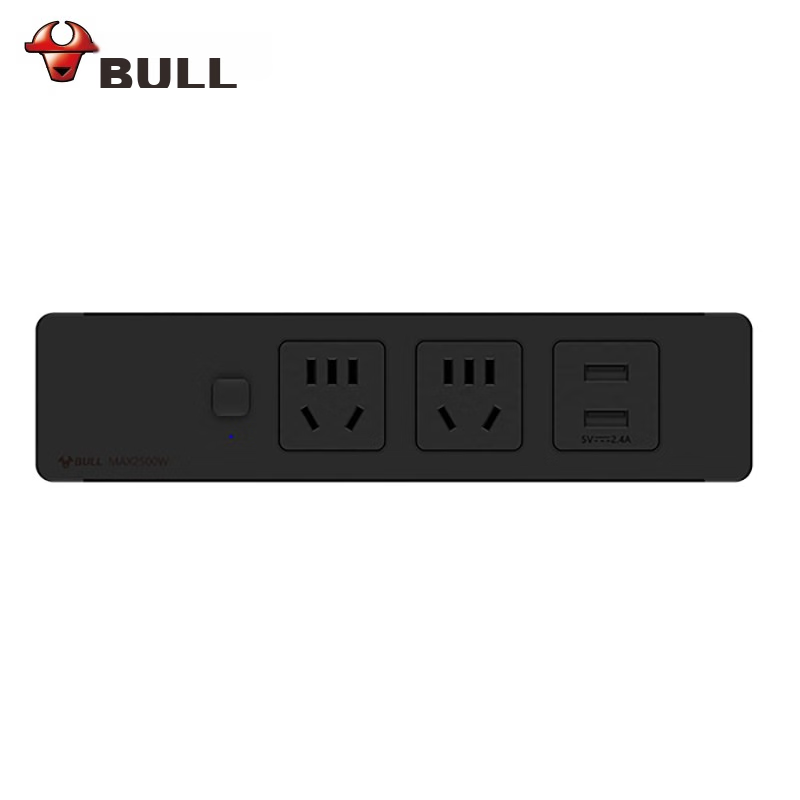

**Product Specifications:**
**Brand:** BULL
**Model:** Embedded Socket
**Features:**
- Mini and exquisite design
- Dual-color options
- CCC certified
- Embedded design with rotatable plug and tail end
- USB charging port
- Flame-retardant material
- Suitable for narrow spaces
- Compact and elegant design
**Rotatable Design:**
- 90° rotatable plug for flush mounting
- Detachable flat plug for reduced installation gap
**Installation:**
- Rotatable plug for easy wiring in different scenarios
- Compatible with wire organizers for neat cable management
**USB Charging:**
- Convenient 1A charging
- Maximum 2.1A charging current
- Precise current recognition for stable charging
**Safety Features:**
- PC material shell with 750°C flame retardancy
- MAX 2500W power capacity
- Thickened 2-core conductor with 1.0mm² wire diameter
**Durability:**
- Integrated copper strips for 10,000 plug and unplug cycles
**Product Details:**
- **Appearance:** Miniature design
- **Series:** Full-pass, GNQ-Q1031 (White), GNQ-Q1021U (White), GNQ-Q1021D (White), GNQ-Q1031H (Black), GNQ-Q1021UH (Black), GNQ-Q1021DH (Black)
- **Configuration:** Various socket and switch combinations
**Electrical Parameters:**
- Rated Voltage: 250V~
- Maximum Current: 10A
- Maximum Power: 2500W
**Dimensions:**
- Product Length: 1.8 meters
- Product Size: 223×53×29.5mm
**USB Parameters:**
- Input: 100V-240V~
- Output: 5V 2.4A Max
**Standards:** Compliant with GB/T and GB standards
**Installation Information:**
- **Full-Pass Configuration Hole Size:** 53mm, 29.5mm, 223mm
- **Full-Pass 3D Diagram Hole Size:** 194mm, 194mm, $2, R6, 46mm, 46mm, R6, 208mm
**Installation Instructions:**
- Securely fix the embedded socket with screws
- Route the wires through the backboard and into the hole
- Use wire organizers to secure the cables
- Complete the installation by fixing the wires and closing the panel
**Note:** The above specifications are based on laboratory reports from BULL.
